Welding & Metal Treatment Products  GULLCO® KAT®100



Mehta Sanghvi & Co is the "Authorised Channel Partner for Gullco International"

KAT® 100 MECHANIZED WELDING AND CUTTING entry-level carriages are designed keeping the productivity and quality in mind. These MECHANIZED WELDING AND CUTTING carriages characterize of simple setup requirements, quick integration into various welding and cutting applications, and basic controls.

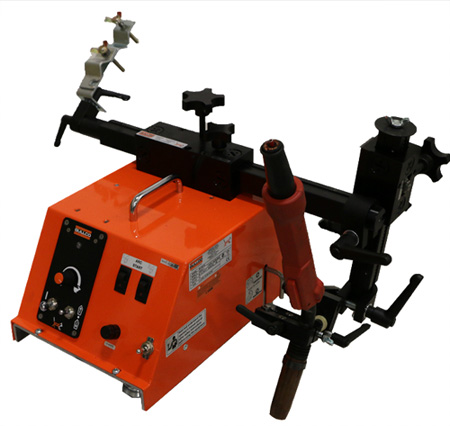

The GULLCO® KAT®100 automation carriage is the major component of an automated system designed to improve welding and cutting applications by increasing quality and reducing the cost of operations by increasing productivity.

Operations of KAT® 100 MECHANIZED WELDING AND CUTTING CARRIAGE

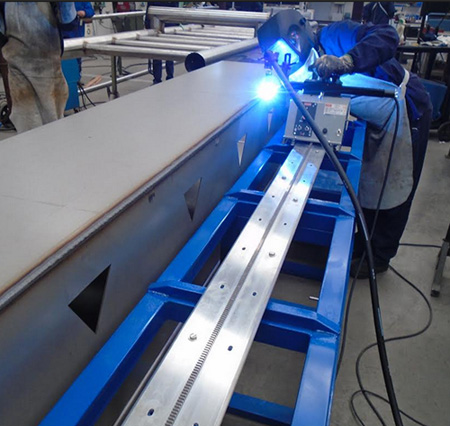

Operator safety is greatly enhanced by the use of GULLCO® low voltage (24 VDC) control and switch-mode power supply integration. The carriage consists of a low voltage 24 VDC permanent magnet gear motor which engages the track through a set of spur gears. An easy to engage clutch lever permits free-wheeling of the carriage for rapid positioning. The carriage is designed to run on a rigid KAT® track to provide stable consistent results.

KAT®100 series carriages come in 2 models to automate both welding and cutting applications along with a variety of accessories to help improve efficiency including torch positioning and movement as well as arc start integration.

SPECIFICATIONS:-
• Speed Range: 1 - 85.5 in/min [2.5 - 217.2 cm/min] No Load Horizontal 2 - 72 in/min [5.1 - 182.9 cm/min] Full Load Vertical
• Weight of Carriage: 13.2 lbs. [6 kg]
• Vertical Load Capacity: 50 lbs. [23 kg]
• Motor: 24 VDC permanent magnet gear motor
• Supply Voltage: 85 to 264 VAC, single phase, 50/60 Hz.
• Complies with: CE Certification
