GCE Single Stage Cylinder Regulator



GCE Single Stage Cylinder Regulator

Single stage area pressure regulators fully conform to all paragraphs of international standard ISO2503. The main focus during product design and manufacture was on providing excellent performance, robustness and durability and guaranteeing its un-compromised safety. The Single stage regulator regulators use a filter protected fully encapsulated heart valve, well proven over several generations of GCE regulators. The body is made of solid forged, high quality brass, polished and chemically stabilised. The zinc die-cast bonnet is protected by a double layer powder painting to guarantee corrosion resistance even in very aggressive environments. For operational safety the integrated pressure relief valve, located on the rear of the body is designed to prevent end users from changing the factory setting. These regulators are independently type-tested and certified by BAM Berlin (The German State Testing Institute) to work safely with up to 300 bar inlet pressure and Outlet Pressure up to 10 bar.

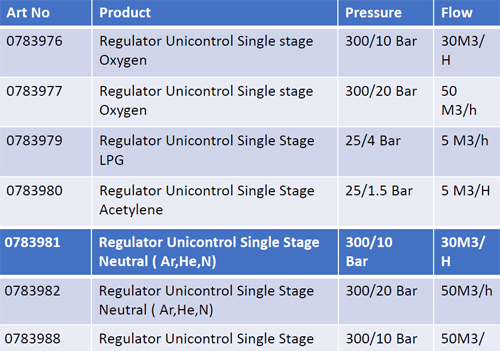

Part No. of the Regulator :


Quote
