Welding Gauge



» Weld gauges are an everyday tool for Certified weld inspectors. Gauges are available for checking alignment, checking dimensions before welding,verifying weld dimensions, and for measuring the size of porosity, among other items. Gauges can be single- multipurpose.

» Weld Measuring Gauges permit you to accurately check welds of varying sizes quickly and easily. You can measure Weld Throat Thickness, Butt Fillet Type Welds, Weld Length, Misalignments (High-Low), and much more depending upon the Gauge selected.

» Weld Measuring Gauges are sturdy, well-made, and come in numerous types to perfectly fit your requirements.

Rotary Ground Clamps
Measures fillet leg length and weld throat size. Undercut and pitting depth. Excess weld metal. root and face gap. angle of preparation and misalignment.
Rotary Ground Clamps

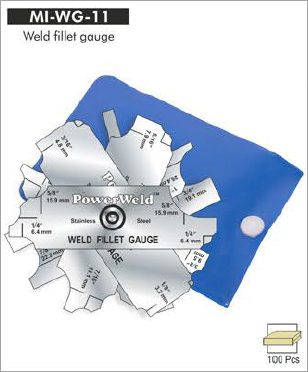

Measures 11 fillet weld size for concave or convex welds.
Rotary Ground Clamps
Measures fillet leg length and weld throat size. Undercut and pitting depth. Excess weld metal. root and face gap. angle of preparation and misalignment.
