Pipe Fit-up & Alignment Clamps



Pipe fit-up alignment clamps serve as essential tools in the fields of welding and pipefitting. Their primary purpose is to align and secure pipes or cylindrical components before the welding or joining process takes place. By ensuring proper alignment and secure holding, these clamps contribute significantly to the attainment of precise and superior quality welds.

Quote


Key features and functions of pipe fit-up alignment clamps:

1. Alignment: The clamps assist in the accurate alignment of pipes or tubes, guaranteeing their precise positioning prior to welding.

2. Holding: These clamps play a crucial role in ensuring that pipes or tubes are perfectly aligned before welding, thus preventing any movement or misalignment that could compromise the quality of the weld.

3. Adjustability: Alignment clamps are designed to be adjustable, enabling them to fit pipes of different diameters and angles. This versatility makes them suitable for a wide range of welding projects.

4. Stability: By providing stability to the pipes, these clamps enable welders to enhance their efficiency and work with increased precision.

5. Uniformity: Alignment clamps play a vital role in upholding consistency within weld joints, thereby ensuring structural integrity and dependability.

6. Time-saving: By minimizing the necessity for manual adjustments and rework, these clamps effectively enhance productivity and save valuable time.

7. Safety: Properly positioned pipes have a reduced likelihood of shifting or unexpectedly moving while being welded, thereby enhancing the safety of the working environment for welders.

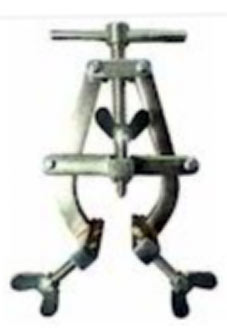

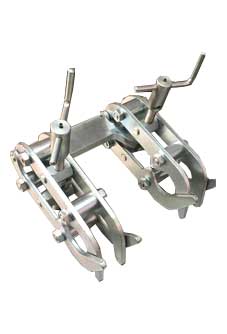

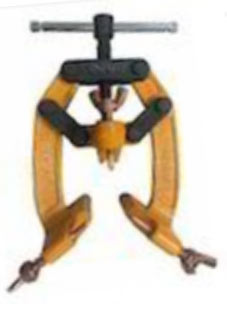

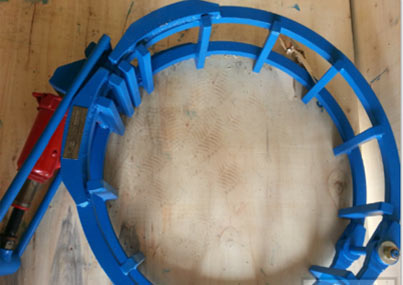

Types of Pipe fit-up alignment clamps:

• C-style clamps: They feature a C-shaped structure and are frequently utilized to position pipes in a parallel arrangement.

• V-style clamps: These possess a V-shaped structure and are beneficial for aligning pipes at various angles, such as for constructing miter joints.

• Jack stands: These stands are designed with an adjustable V-shaped or roller-style head to provide support and alignment for larger pipes or heavy components.

• Magnetic clamps: These devices employ magnets to secure pipes, providing a convenient and effortless method for temporary alignments.

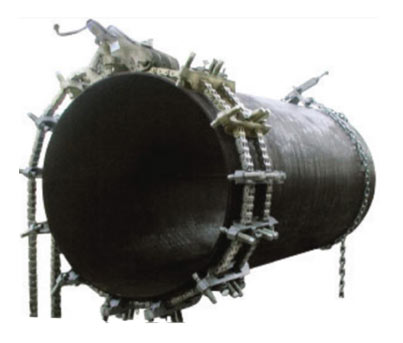

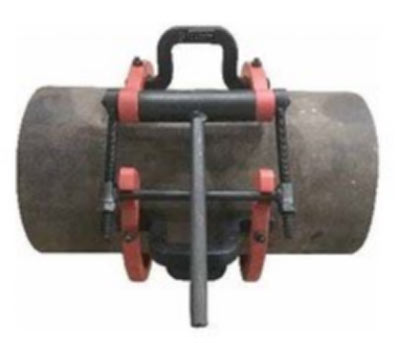

• Chain clamps: Pipes are securely held together during welding using a chain mechanism, providing both flexibility and ease of use.
