MOGGY® Automated Trackless Welding Carriage
Mehta Sanghvi & Co is the "Authorised Channel Partner for Gullco International"
We are an industry-leading supplier of welding automation solutions. WELDING & CUTTING CARRIAGES is the core product which is designed and manufactured in perfection which helps to improve productivity, minimize defect rates, and reduce overall costs.
Mehta Sanghvi offer a wide range of welding/cutting carriages to suit different customer needs.
PORTABLE TRACKLESS WELDING CARRIAGE - MOGGY® AND MAGNETIC MOGGY®

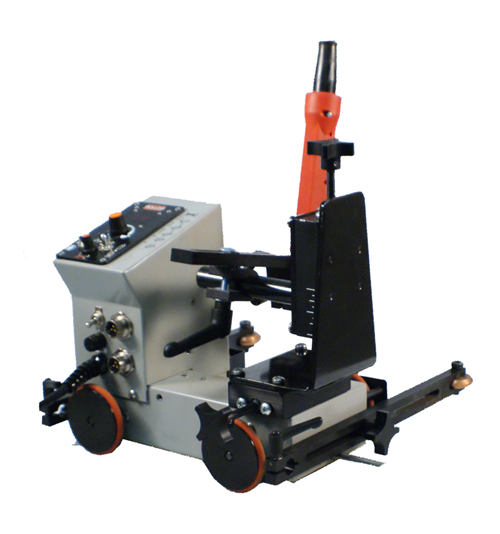

MOGGY® Automated Trackless Welding Carriage
The Gullco MOGGY® friction drive travel carriage is designed to perform Horizontal Fillet Welding, Lap Welding and Butt Welding. It can be fitted with a Gullco Compact Oscillator to perform multi-pass welding. These operations can be performed on horizontal fillets with a minimum radius of 39 in. (1 meter) and up to a 30º incline. Following is a brief description of the Moggy and components that make up the system.

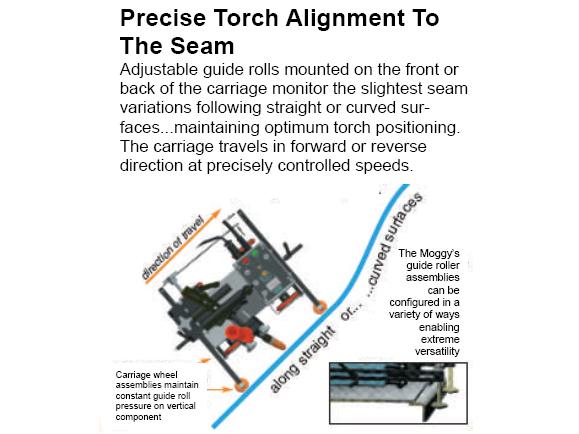

Magnetic MOGGY® Trackless Welding Travel Carriage is a translucent, portable, four-wheel friction drive travel carriage that can be used with or without track to automate welding operations. A speed potentiometer provides infinite speed selection within the 3.25-100.50 in/min (8.26-255.27 cm/min) range. The unit comes complete with adjustable guide rolls, travel limit switch assembly, vertical and horizontal slides providing 1 3/4" (44.4mm) adjustment and a semi-automatic gun holder. It is designed to run on a horizontal path against a vertical surface or a vertical path against a horizontal surface (Magnetic MOGGY®) to perform a fillet weld.
The Standard MOGGY® can be adapted for use on standard 6" (152.4mm) v-groove track by reversing the wheel assemblies. Safety is assured by using Gullco low voltage 24 volt DC highly advanced control power supply system that is available in 3 line voltage inputs ... 42, 115 and 230 volt AC 50/60 Hz.
Magnetic MOGGY® Trackless Welding Travel Carriage is "economical, highly efficient automation of out-of-position fillet, lap and butt-welding applications"
This Magnetic MOGGY® is essentially the same as the Standard MOGGY® described inside this folder except it has a magnetic base and heavy-duty urethane 0.875" (22.23 mm) wide wheels for continuous travel in the horizontal and vertical position.
Features:
• Ideal for automatic horizontal fillet, lap and butt welding operations
• Controls are available to perform continuous and/or stitch weld operations

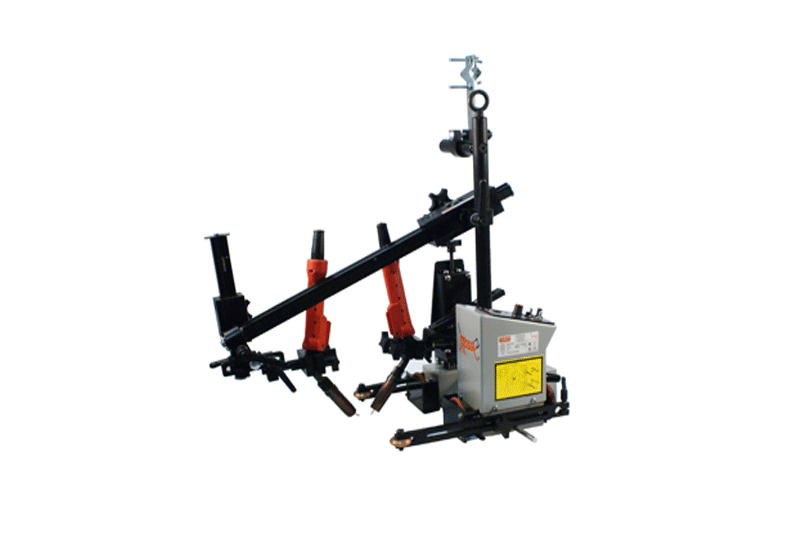

• Dual gun holder assembly is available for efficient simultaneous welding
• Wheels on the standard Moggy can be reversed to allow the moggy to run on standard v-groove track
• The magnetic moggy has a magnetic base that clings to the vertical member for out of position applications
